What is EVOLVE？
It is a new product series developed by JASIC that features full digital control welding machines with IoT technology and cloud service.
 |
 |
 |
 |
| Advanced DSP Processor | Full Digital HMI | High Precision Arc Control | Cloud Service |
Why EVOLVE?
Today’s welding challenges are complex and constantly changing, and a welding machine that can update its processes and functions on
demand is JASIC’s response to those challenges.
This constantly EVOLVEing future-proof inverter fits the modern welding environment and survives its challenges.

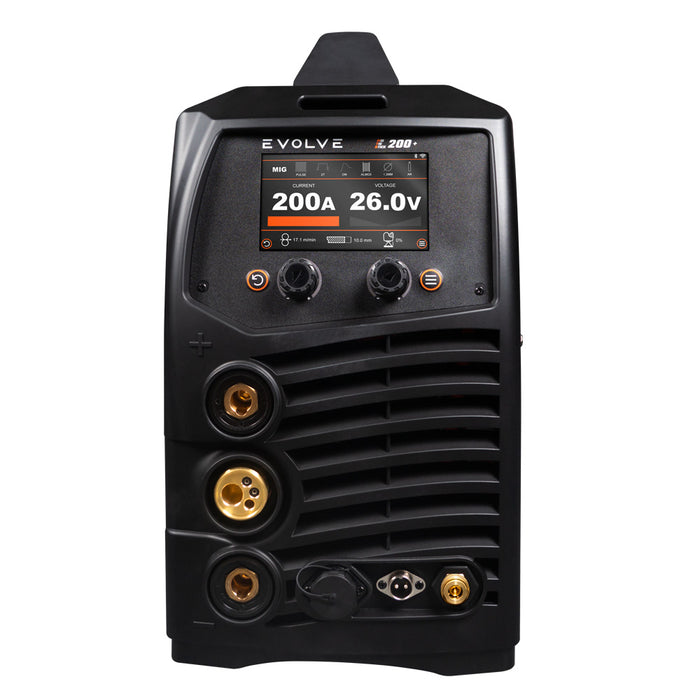

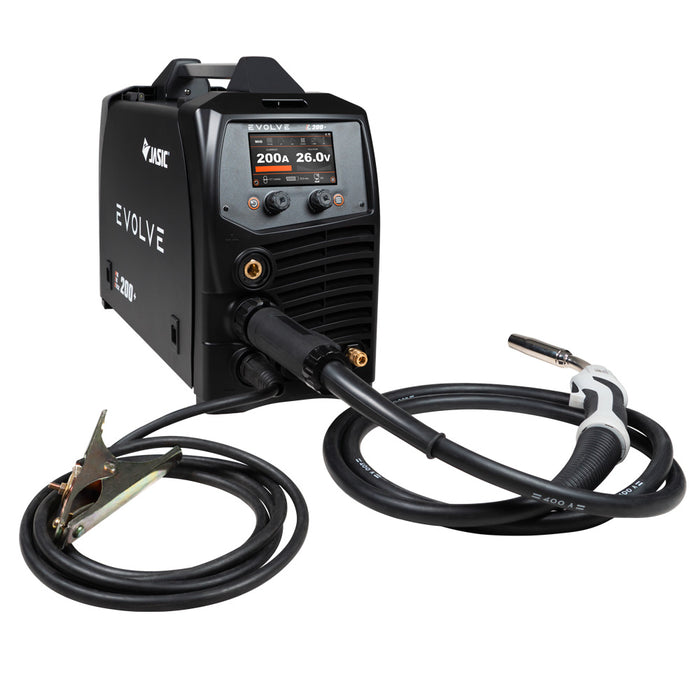

The EVOLVE 200+
Being the introductory model in the range, it brings in JASIC’s concept of advanced digital welding thanks to 4 main aspects of the machine:
The ARM Cortex-M4, with its floating-point unit (FPU), is ideal for precise pulse control due to its efficient signal processing.
It supports advanced welding algorithms, enhancing the EVOLVE200+’s overall weld quality.
Full Digital HMI (Human-Machine Interface)
EVOLVE’s digital interface provides a seamless, intuitive user experience, regardless of the welder’s distance from the power source.
Mobile App
- Capable of managing multiple machines
- Wireless connection via Bluetooth or Wifi
- Intuitive user interface
- Comprehensive welding parameter configuration
Inverter Frequency Modulation
This feature boosts EVOLVE200+’s energy efficiency by adjusting its inverters’ switching frequency (26K-40K) based on output. High frequency for low current settings improves arc control, while low frequency for high current reduces power loss and heat.
Glick Function
The “trim” function allows users to adjust output current mid-weld during 4T MIG/TIG welding by pressing the torch trigger. This enables more precise heat control and greater flexibility in weld bead shaping.
Double Pulse MIG Welding
Double pulse MIG welding uses two current pulses per cycle. This stirs the weld pool more effectively than single pulse, resulting in finer grain structure, better weld bead quality, and reduced heat input.
JTECloud
This cloud service aims to provide comprehensive productivity boost by allowing users to capitalize on the power of welding data and IoT applications.
Professional Welding Cloud Service
- Welding data documentation, statistics, and analysis
- Cost calculation and analysis
- Machine management and maintenance
OTA (Over-the-air) Firmware Update
Users can receive push notification on the EVOLVE200+ whenever there’s a new version of firmware available*. Upon the user’s approval, the machine will download the updated firmware and complete firmware update process automatically.
Note: the machine’s firmware is also downgradable.
On Demand Processes & Functions
To be an EVOLVE welding machine means being able to renew its processes and functions according to the job’s requirements. When connected to JTECloud, the EVOLVE200+ is able to download new processes and functions, and replace the old ones if the user wishes.
Fully Synergic, Powered by JTECloud
The EVOLVE200+ has 19 built-in synergic programs covering MMA, TIG, MIG/MAG, pulse MIG and double pulse MIG.
And on JTECloud, users can have access to an ever-expanding synergic program library. Users can download these on-cloud synergic programs to the EVOLVE200+ when the machine is connected to JTECloud.
Features
- Single and double pulse synergic MIG
- High frequency/LIFT DC pulse TIG
- MMA
- 4 roll wire feeder
- User friendly graphical user interface
- Wi-Fi enabled firmware updates
- App control
- Digital control MIG torch
- 100+ Synergic programs
- 100 job memory storage
- 2T/4T/Spot trigger control
- IP23S
- On demand cooling
- Ideally suited for light industrial fabrication work
- Generator friendly *must have AVR
| Processes | MMA/MIG/MAG/Pulse MIG/Double Pulse MIG/Lift TIG/HF TIG |
| Power supply | 1ph~AC230 V, 50/60 Hz |
| Rated input power | 5.83 kVA |
| Power factor | 0.65 |
| Rated efficiency | 82% |
| Rated no-load voltage | 77 V |
| Rated maximum output | MMA 180 A/27.2 V, MIG/MAG 200 A/24 V, Lift TIG/HF TIG 200 A/18 V |
| Rated duty cycle | 25% @40℃ |
| Welding output range | MMA 20180 A, MIG/MAG 20200 A, Lift TIG/HF TIG 5~200 A |
| Protection class | IP23S |
| Insulation class | H |
| Welding wire material | SG2/SST (CrNi)/AlMg5/AlSi4/Cusi3 |
| Cooling method | Air cooling |
| Dimensions | 605 x 400 x 230 mm |
| Weight | 17.0 kg |
