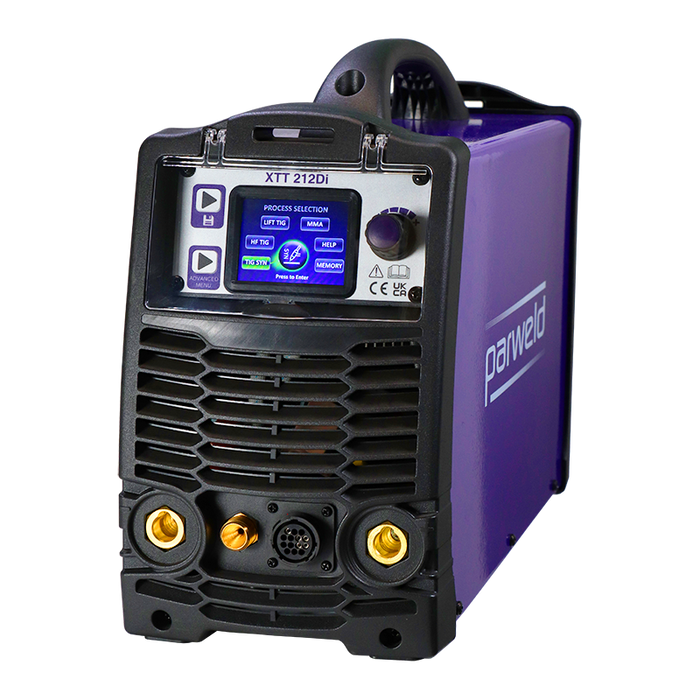

Parweld XTT 212Di AC/DC Pulsed 200A TIG Inverter Machine
Unsure? Get in touch...
We are always happy to help. If you have any questions or can't find what you are looking for just give us a call on 01375 800761 or email us at sales@toolweld.co.uk
Get an Additional Discount!
Simply use the code WELD5 at the checkout to get even more savings when you spend £250 or more...
The XTT 212Di single-phase AC/DC Pulsed TIG Inverter is capable of HF TIG, Lift TIG, and MMA welding. This dual voltage (110V/230V) compact and lightweight machine has a multi-language digital user interface, which rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop. A synergic control option in TIG mode further simplifies the set up process. Advanced settings for each process can be accessed from the front panel. There is also a memory option that allows you to save and recall up to 6 welding jobs. Inverter technology delivers significant power savings over conventional transformer based machines. The XTS 908 Unit Attachment allows for the option of water cooling the TIG Power Source Machine. Compatible with optional Foot Control device.
Key Features Include:
- Pulse Function For Superior Arc Control
- Square Wave AC TIG
- 110V or 230V Input
- TIG Welds Any Metal Up To 6mm
- Reduced Footprint
- Variable Frequency for Faster Welding
- Optional Water Cooler Attachment Available
| Weight | 12 kg |
|---|---|
| Dimensions | 460 × 170 × 320 mm |
| Phase |
Single Phase |
| Machine Style |
Portable |
| Machine Type |
Inverter |
| Maximum Current |
200A DC |
| Output Current for 230V |
5-200A DC, 10-200A AC |
| Output Current for 110V |
5-140A DC, 10-140A AC |
| Duty Cycle (230V) |
200A @ 30% Duty Cycle |
| Duty Cycle (110V) |
140A @ 40% Duty Cycle |
| Input Voltage |
110V 1P, 230V 1P |
| Input Current (Eff) |
17.5A, 21A |
| Output |
AC, DC |
| Pulse Frequency |
0.5-200Hz |
| AC Frequency |
50-250Hz |
| Minimum Fuse Rating |
16A, 32A |
| KVA |
6.4 |
| Generator Size (Requires AVC) |
9 KVA |
| Cooling |
Air, Fan, Forced, Water (with Unit Attachment) |
| Comes With |
3m Earth Cable, 3m Input Cable, Gas Hose |
| Special Features |
2T/4T Trigger Latching, Lift TIG and MMA, Pulse TIG function for superior arc control, TIG Mode, HF TIG, Synergic Control For TIG Welding |
| Warranty |
5 Year Warranty |
| Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
